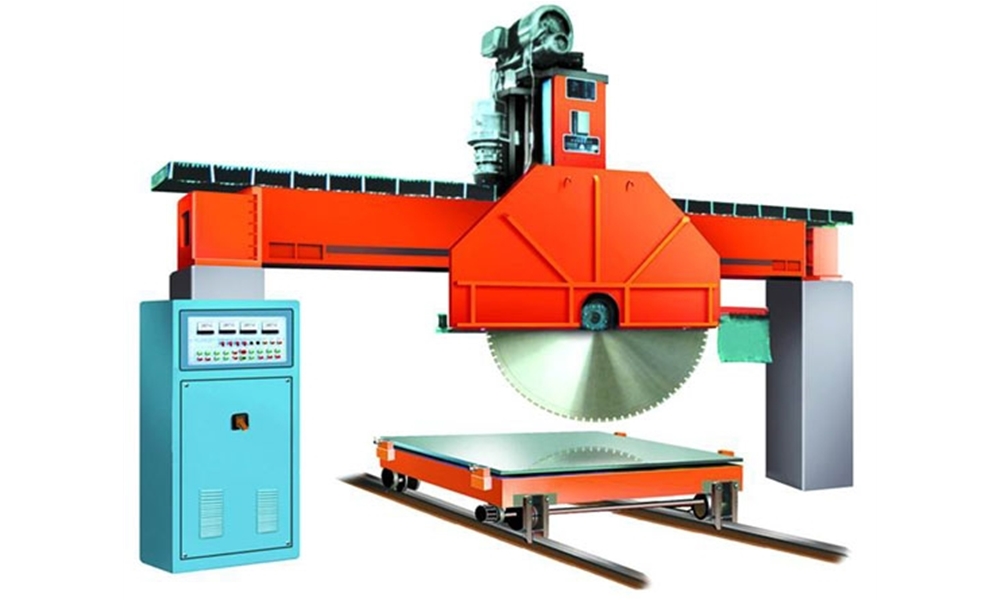

Name：QQ2500 Bridge type disk saw stone sawing machine
Details
The machine is mainly used for cutting rough granite materials into panels with the thickness of 10mm and above.| Model | QQ1800 | QQ2200 | QQ2500 | |
| 1 | The maximum diameter of saw web | Ф1800mm | Ф2200mm | Ф2500mm |
| 2 | The maximum cross travel of saw web | 3100mm | 3300mm | 3300mm |
| 3 | The maximum lifting journey of saw web | 900mm | 1050mm | 1300mm |
| 4 | Dimension of rough material | 3000×1600×1500mm | 3300×1600×1300mm | 3300×1600×1500mm |
| 5 | Total power | 33kw | 40kw | 40kw |
| 6 | Overall dimension | 7300×5160×5400mm | 7800×5150×5410mm | 7800×5230×6030mm |
| 7 | weight | 7000kg | 7200kg | 7400kg |
|
